Data Factory

Overview of Data Factory

The Data Factory is a comprehensive data management solution that combines intelligent data mining with advanced synthetic data generation. The platform provides two main workflows:

• Configure Data Rules: Set up intelligent data generation patterns using a 3-step wizard
• Mine & Generate Data: Execute queries to extract real data or generate synthetic datasets

Configure Data Rules

The Configure Data Rules feature uses a sophisticated 3-step wizard to analyze your SQL queries and automatically detect data patterns for synthetic data generation.

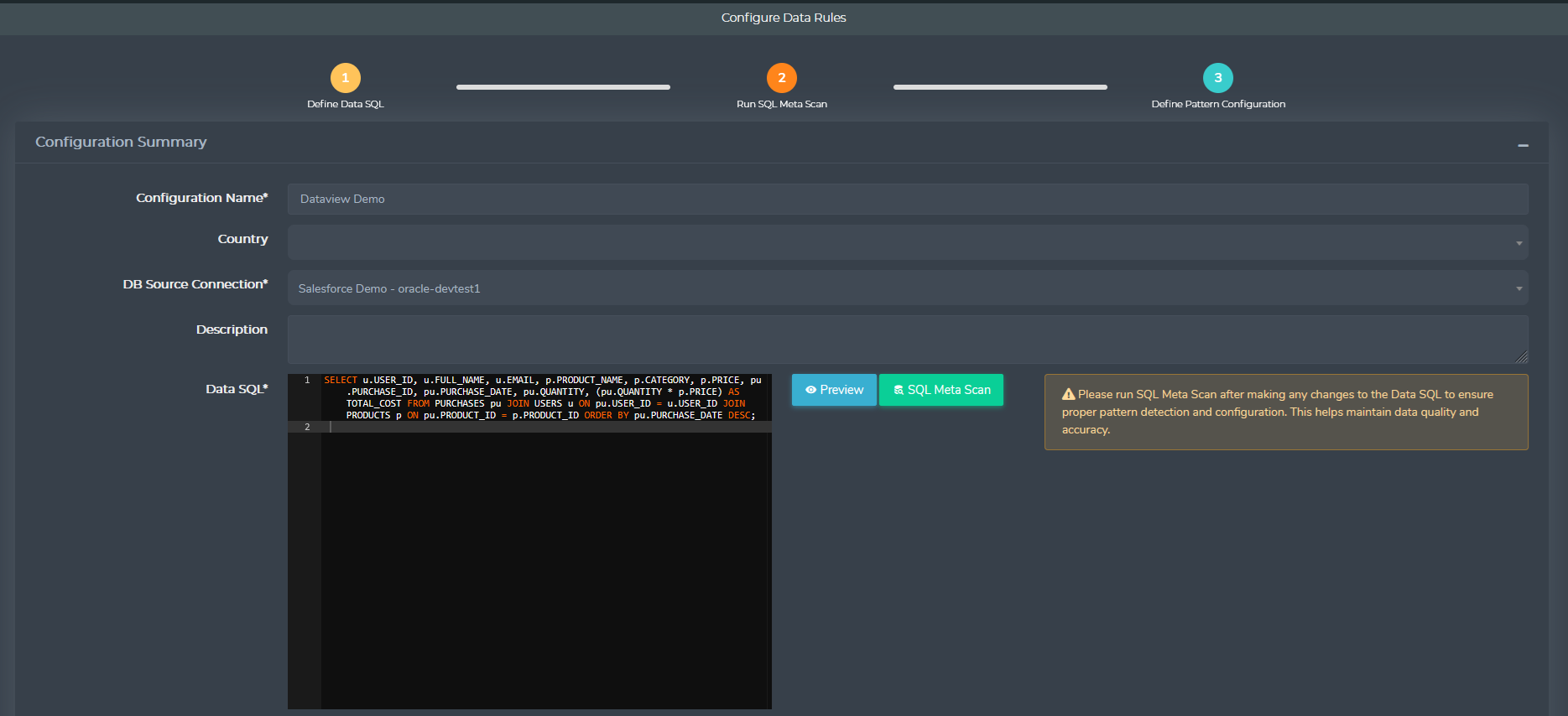

Step 1: Define Data SQL

Navigate to Data Factory > Configure Data Rules to start the configuration wizard.

Configuration Form Fields:

Field	Description
Configuration Name	Name for your data generation configuration
Country	Geographic region for data generation
DB Source Connection	Database connection to analyze
Description	Optional description of the configuration

Data SQL Editor:

• Advanced SQL editor with syntax highlighting
• Support for complex queries with JOINs, subqueries, and aggregations
• Real-time validation and error detection

Available Actions:

• Preview: Test your SQL query and see sample results
• SQL Meta Scan: Analyze the query structure for automatic pattern detection

Important

Always run the SQL Meta Scan after defining your query. This enables the Data Factory to automatically detect column patterns and suggest appropriate data generation rules.

Step 2: Run SQL Meta Scan

The SQL Meta Scan analyzes your custom SQL queries to understand the data structure and patterns.

Scan Options:

• Scan Only: Analyzes the query structure without loading patterns
• Scan & Load Pattern: Analyzes the query and automatically loads suggested generation patterns

This intelligent scanning process:

• Identifies table relationships and joins
• Detects column data types and constraints
• Suggests appropriate Faker patterns for realistic data generation
• Maps foreign key relationships for data consistency

Step 3: Define Pattern Configuration

The final step allows you to configure detailed generation rules for each column in your dataset.

SQL Pattern Details

The system displays a comprehensive analysis of your SQL query structure:

Column	Description
Table Name	Source table identified in the query
Column Name	Individual column from the database
Data Type	Database data type (VARCHAR2, NUMBER, DATE, etc.)
Data Length	Maximum character length for the column
Original Alias	Column alias used in the SQL query

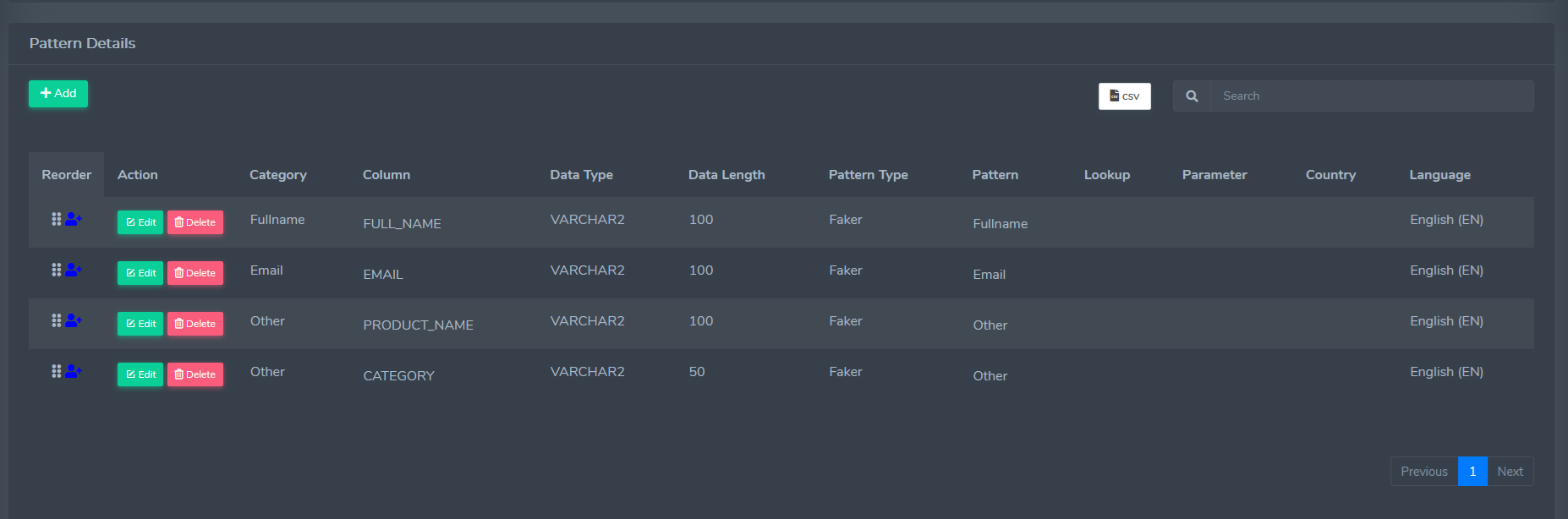

Pattern Details Configuration

Configure intelligent data generation rules for each column:

Advanced Pattern Types:

• Faker: Built-in realistic data generation (names, emails, addresses, etc.)
• Lookup: Reference tables for consistent data relationships
• Regex: Custom regular expression patterns
• Custom: User-defined generation logic

Mine & Generate Data

The Mine & Generate Data interface provides access to your configured data sources and generation capabilities.

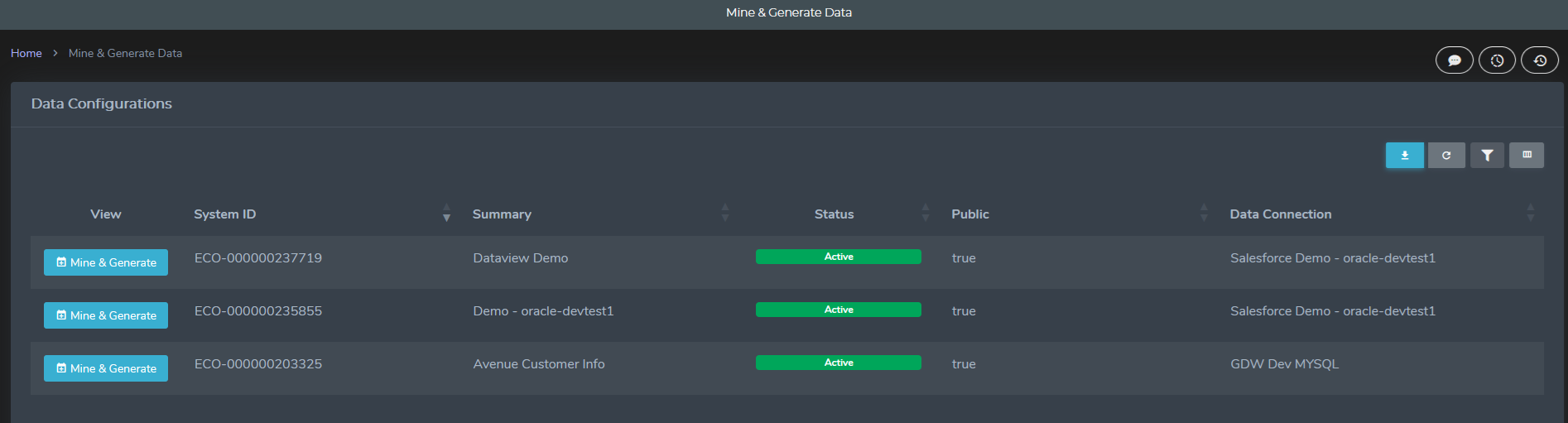

Data Configurations

Navigate to Data Factory > Mine & Generate Data to access your data configurations.

Data Results Interface

When you click "Mine & Generate" on a configuration, you access the data results interface with advanced filtering and data management capabilities.

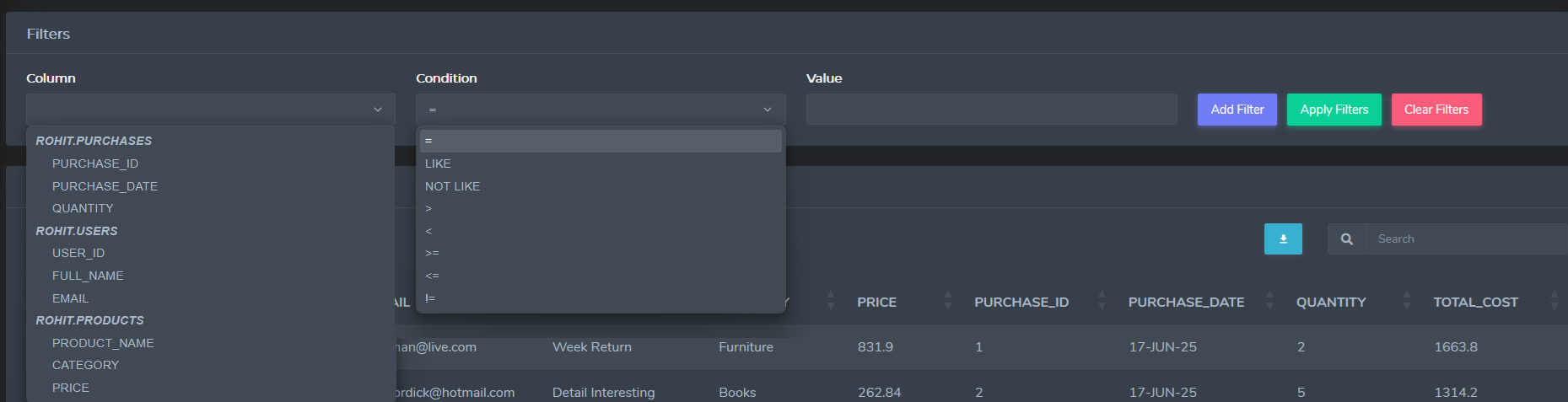

Advanced WHERE Clause Builder

The filtering system provides a sophisticated UI for building custom WHERE clauses that are applied to your SQL query in the backend:

Filter Components:

• Column: Select any column from your query results
• Condition: Choose from multiple operators for precise filtering
• Value: Specify the value to match against

Available Condition Operators:

Operator	Name	Description
=	Equals	Exact match filtering
LIKE	Pattern Match	Pattern matching with wildcards
NOT LIKE	Exclude Pattern	Exclude pattern matches
>	Greater Than	Numerical and date comparisons
>=	Greater/Equal	Inclusive range filtering
<=	Less/Equal	Upper bound filtering
!=	Not Equal	Exclusion filtering

Filter Management:

• Add Filter: Build multiple filter conditions
• Apply Filters: Execute the filtered query
• Clear Filters: Remove all active filters

This advanced filtering system dynamically modifies your original SQL query by appending WHERE clauses, allowing you to create complex data subsets without writing additional SQL code.

Data Actions

• Create Booking: Reserve specific data records for team use
• Data Subset: Create focused data subsets
• Generate Data: Create synthetic data based on configured patterns

Data Preview

View live data results with:

• Selectable rows with checkboxes
• Column sorting and filtering
• Pagination for large datasets
• Export capabilities

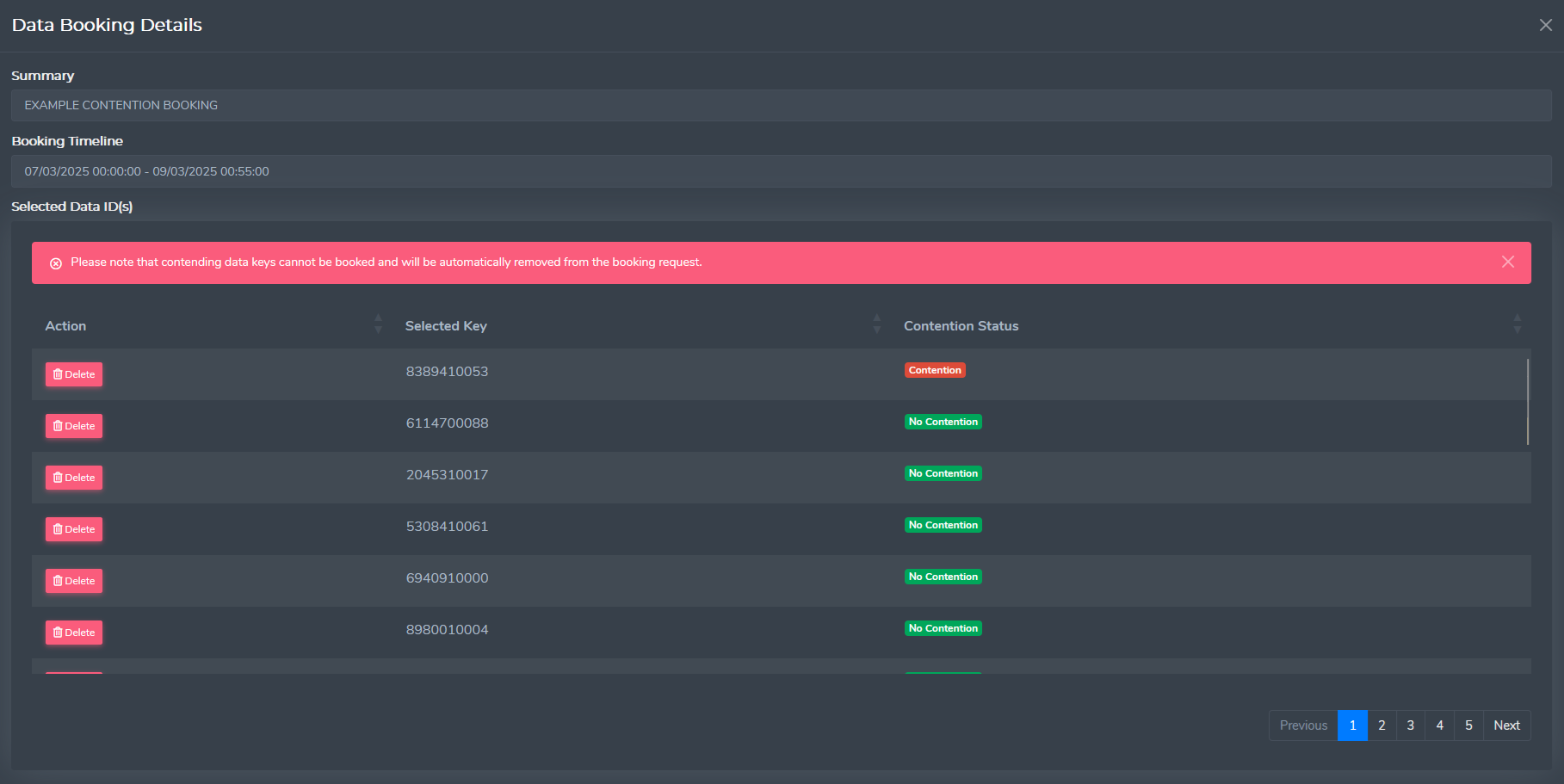

Create Data Booking

When you select data rows and click "Create Booking", the system opens a booking management interface:

Booking Details:

• Summary: Booking name and description
• Booking Timeline: Start and end dates for data reservation
• Selected Data ID(s): List of specific records being booked

Contention Management:

• Contention Status: Real-time availability checking
• Conflict Resolution: Automatic removal of conflicting data
• Individual Actions: Delete specific items from booking

The system automatically checks for data conflicts and displays "No Contention" for available records or warns about conflicting bookings.

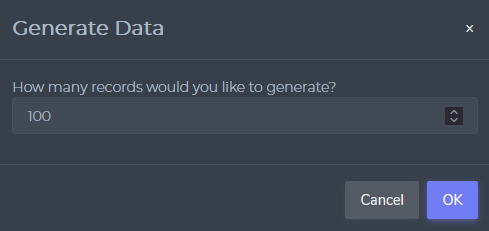

Generate Synthetic Data

Click "Generate Data" to create synthetic datasets based on your pre-configured patterns:

Generation Options:

• Record Count: Specify the number of records to generate

The generated data follows all the patterns and rules you've configured, ensuring realistic and consistent synthetic datasets.
